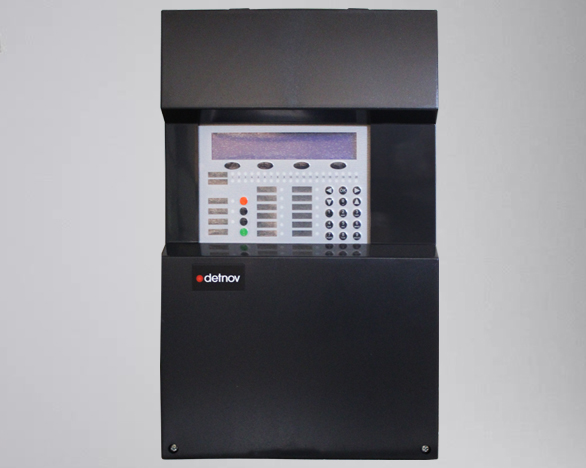

Detnov Analog Control Panel

Detnov Addressable Control Panel

CAD-150-1  (One Loop)

CAD-150-2  (Two Loops)

CAD-150-4  (Four Loops Not Extensible)

CAD-150-8  (Four Loops Extensible to eight Loops)

Description

DETNOV's range of analogue control panels has been approved according to EN54-2 and EN54-4 regulations

to cover all the requirements of small and medium installations.

Each loop may control up to 250 elements, and a limitless number of detectors and modules can be installed. The communication and power supply between the loop elements and the fire control panel is carried out through 2 wires. The element connection supports non-polarity.

The features common to the range include two relay outputs on the panel for the alarm state and the fault

state, two supervised sounder outputs and a permanent 24V auxiliary power supply output. It also has option

to connect an optional communication card to enable the system to be remotely controlled and integrated with

other systems.

CAD 150 fire control panels may be installed on the network with other fire control panels and

DETNOV repeaters. The networked system may reach up to 32 nodes.

Fire control panels have a keyboard that lets you choose and personalize the language required, and a 40x4

character display that presents all the needed information through menus and sub-menus with easy browsing

using the control keyboard. They also have a system status LED and 20 LEDs for displaying the fi re state and

fault state of the different fire zones.

The fire control panel has an auto-search option, which facilitates the commissioning of the system by reducing

execution costs. The intuitive software let you name the loop elements, assign elements to the zones, and

create event-action pairs in the system's inputs and outputs.

Analogue System

Features

o Auto-search function

o Auto-check function

o Double address detection

o Up to 4.000 events log register

o Quick access keys for browsing

o Up to 250 zones per software

o 20 zone indications

o 250 elements per loop without polarity

o Up to 50 sounders per loop

o Alarm and fault relays

o Two supervised sounder outputs

o 24V auxiliary output

o Day and night configuration

o Detector sensitivity configuration

o Configuration software

o USB port for configuration

o Installation on network

Applications

DETNOV's range of analogue fire control panels, CAD-150, are ideal products to cover all the requirements of small and medium installations. Thanks to their features, these fire control panels are simple to install and have an excellent quality-price relationship, making them ideal products for protected areas in which

Their typical applications are: shopping malls, schools, industries, car parks, etc.
