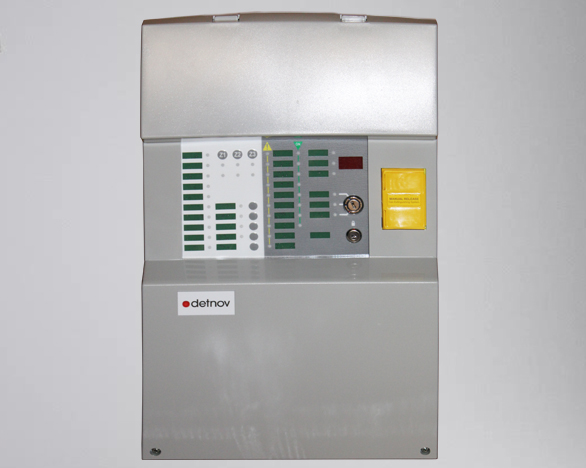

Detnov Conventional Control Panels

Spain Made

CCD-102 (Two Zones)

CCD-104 (Four Zones)

CCD-108 (Eight Zones)

CCD-112 (Twelve Zones)

Description

The CCD-100 fire control panels have been certified according to EN54-2 and EN54-4 standards, and they have

been designed to meet all the requirements of small and medium installations.

This range of fire control panels is made up of 4 models, and it offers 2, 4, 8 and 12 zone models. Among the

main features shared by the entire range: differentiation between the manual call point and detector alarm, free

contact fault and alarm relay outputs, two supervised sounder outputs, 24V output, 24V resettable output and

configurable input. The range also supports the connection of optional cards such as four free contact relays,

four supervised output sounders and a communication card to control the system remotely.

Features

o 2, 4, 8, and 12 zone models

o Free contact alarm relay output

o Free contact fault relay output

o 2 supervised sounder outputs

o Sounder delay configuration on board

o 24V auxiliary output

o 24V resettable output

o Configurable external input

o Test mode with auto-reset function

o Multi-language keyboard

o Capacity for 72h stand-by batteries

o ABS plastic case which can be fitted into the wall

o Optional supervised sounder card

o Optional free contact relay card

o Optional communication card

o EN54-2 and EN54-4 approved

Applications

The CCD-100 range of fire control panels are ideal products to meet all the requirements of small and medium

installations. Thanks to their simplicity of installation and excellent quality-price ratio, these fire control panels

are ideal for protected areas where up to 256 conventional fire detectors are required, such as shopping malls,

schools, industrial buildings, car parks, etc.
