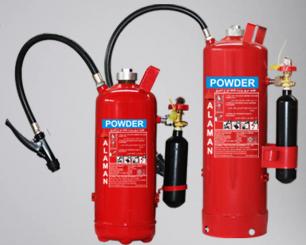

DRY POWDER EXTINGUISHER Ext- CO2 Cartrige

DRY POWDER EXTINGUISHER EXTERNAL CO2 CARTRIGE



ALAMAN DRY POWDER FIRE EXTINGUISHER are manufactured as per ISO 9001:2015 and made of steel sheets painted with electrostatic Powder Coating and 180o C.



Design Features

-Ideal for use in corrosive and harsh service conditions

   such as offshore platforms and marine jetties.

-Effective on Class A, B, C & E fires.

-Powder flow is controllable from the squeeze grip valve.

-Features a safety valve on the cartridge and main valve

   to ensure maximum security and safety.

-Incorporated with high pressure external CO2 cartridge.

-Electrostatic powder coating after shot blasting to ensure

   excellent resistance to corrosion.

-Extinguishers can be internally coated with PVC resin

   using special Plastcoat technology.

-Excellent for use in remote areas, as extinguisher is easy

   to maintain and refill.



Options

-Special AB-M series extinguishers with metal dry powder

    extinguishing agent ideal for use on Class D fires of metals

    like magnesium, Sodium etc.

-Special AB-F series extinguishers with Sodium bicarbonate

    extinguishing agent ideal for use in offshore on Class B & C fires.

-Plastic base available upon request.



Product Specifications

Catalogue Model

ABDP6

ABDP12

Cap. Of Extinguisher

6 Kg

12 Kg

Working Pressure

15bar

Test Pressure

30bar

Valve

Brass, Nickel plated

Rising Pipe

Aluminum or Plastic

Total Weight

10.5 Kg

18.75 Kg

Range Of discharge

6-8 m

6-8 m

Duration Of Discharge

12 -15 Sec

17 20 Sec

Operating temperature

-30 oC To +60 oC




Product Code:
