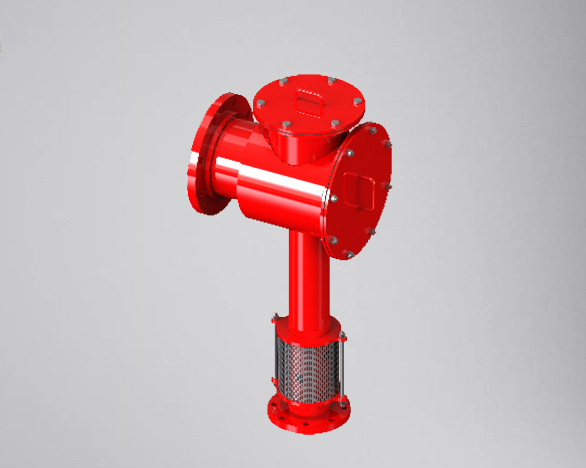

Foam Chamber
Foam Chamber
ALAMAN Foam chambers are manufactured as per ISO 9001:2015
Foam chambers are discharge outlet used with bladder tanks, pressure pump proportioners and foam storage tanks.
They are basically located or installed on the line proportioners near to the outlet of the fuel tank to deliver foam to the surface of a flammable liquid.
Foam chamber consist of glass vapor seal located in the body.
As the seal break foam enters inside fuel tank or fuel surface to suppress the fuel carrying heat.
ALAMAN manufactured foam chamber of carbon steel material & stainless steel material ( 304 & 316) ranging from 80 nb to 200 nb size with a flow rate from 66.24 lpm to 2840 lpm (17.5 to 750 gpm).
MATERIAL OF CONSTRUCTION: Carbon Steel
|
SR. No. |
Description |
|
1 |
Foam Chamber |
|
2 |
Pipe |
|
3 |
Flanges |
|
4 |
Orifice Plate |
|
5 |
Nut & Bolts |
|
6 |
Vapourseal |
TECHNICAL DETAILS:
|
1 |
Working Pressure |
2.1 Bar (30 PSI) To 7 Bar (100 PSI) |
|
2 |
Flanges Drilling |
ANSI.B.16.5,150# |
|
3 |
Vapour Seal Rupture Pressure |
0.7 to 1.75 Bar |
|
4 |
Max. Vapour Seal Back Pressure |
0.07 Bar |
|
5 |
Finish |
Painted Fire-Red To SHADE RAL 3000 |

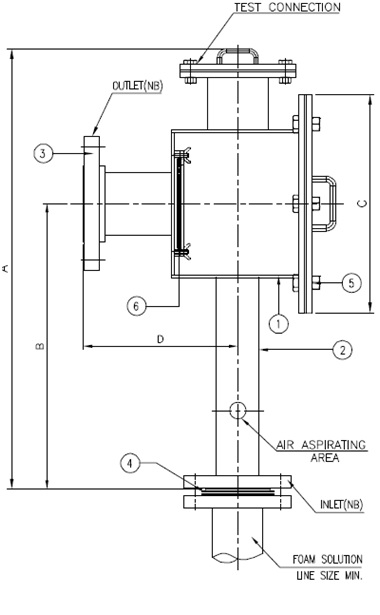

PERFORMANCE & DIMENSIONAL DETAILS
|
MODEL |
INLET (NB) |
OUTLET (NB) |
INLET PRESSURE RANGE BAR (PSI) |
FLOW RANGE |
A |
B |
C |
D |
|
|
GPM |
LPM |
||||||||
|
FCC |
65 |
100 |
2.1 (30) – 7 (100) |
51-190 |
193-719 |
740 |
505±5 |
295±5 |
200±10 |
|
FCC |
80 |
150 |
2.1 (30) – 7 (100) |
100 – 390 |
378 –1476 |
930 |
650±10 |
390±5 |
260±10 |
