Foam Maker
Foam Maker
ALAMAN Foam Maker are manufactured as per ISO 9001:2015
Foam maker is a discharge device used for protection of open floating-roof storage tank where low velocity foam streams are desired.
Its working principle is same as that of foam chamber, only difference being foam maker is allows foam to flow directly without storage.
ALAMAN manufactured foam maker are available in carbon steel & stainless steel (304 & 316), ranging from 80 nb to 150 nb size with a flow rate from 66.24 lpm to 1477 lpm (17.5 to 390 gpm).

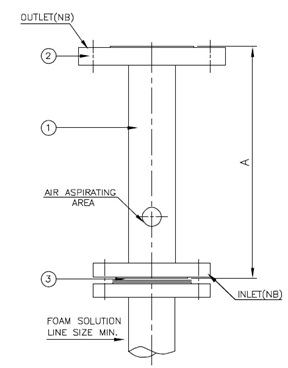

CONSTRUCTION
|
SR. NO. |
DESCRIPTION |
|
1 |
PIPE |
|
2 |
FLANGES |
|
3 |
ORIFICE PLATE |
TECHNICAL DETAILS:
|
1 |
WORKING PRESSURE: -2.1 BAR (30 PSI) TO 7 BAR (100 PSI) |
|
2 |
FLANGES DRILLING – ANSI.B.16.5,150# |
|
3 |
FINISH :-PAINTED FIRE-RED TO SHADE RAL 3000 (115-160 MIC-DFT) |
|
4 |
UL FILE NO: EX27295 |
PERFORMANCE & DIMENSIONAL DETAILS
|
MODEL |
INLET (NB) |
OUTLET (NB) |
INLET PRESSURE RANGE BAR (PSI) |
FLOW RANGE |
K-fACTOR
RANGE(LPM/ |
A |
|
|
GPM |
LPM |
||||||
|
FMC |
100 |
150 |
2.1 (30) – 7 (100) |
100 – 390 |
378 –1476 |
261- |
500 ±10 |
)
