Portable Single Gas Detector

Home Page / Products / Gas Detector / Portable Single Gas Detector

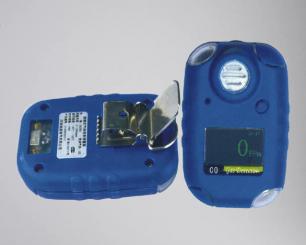

Portable Single Gas Detector



ALAMAN PORTABLE SINGLE GAS DETECTOR are manufactured as per ISO 9001:2015







Feature:

  • • 128 x 64 matrix dot OLED, with backlight display.
  • • IP66 design for water-dust proof.
  • • Low, high alarm limit, TWA and STEL are adjustable.
  • • Advanced self-test of complete functions automatically when switched on.
  • • 500 record storage.
  • • IR two-ways data receiving and dispatching and can adjusted with Upper machine by USB.
  • • Reliable and durable fixed life by original imported sensor and battery can be replaced.
  • • Three ways for alarm: audible alarm, visual alarm and vibration.
  • Reliable and durable fixed life by the imported sensor.
  • Automatically calibration and zero set.
  • English menu, displaying real time and battery capacity, low battery indication and automatic turn-off for low voltage.
  • Advanced self-test of complete functions automatically when turn on 1000 record capacity.
  • Rapid and effective warning with audible alarm, and extremely bright visual light alarm and vibrating alarm as standard.



Specificatiobs:

Madel

GC260

Gas

Combustible Gas, Toxic gas and Oxygen

Accuracy

3% F.S

Response

T90<30s

Operating Temperature

Combustible Gas: -40 ºC ~70 ºC

toxic Gas: -30 ºC ~50 ºC;

Humidity

< 95% RH non-condensation

Voltage

DC 3.6 V  Li-ion Battery 1200mAh

Working Period

8 hours for combustible gas: 200 hours for toxic gas and oxygen

IP Grade

IP66

Net Weight

About 120 g

Dimension

91 mm X 63 mm X 23 mm

Alarm indication

≥85 dB

Explosive grade

Ex ia IIC T4




Product Code: AB-GC260
