Hose Reel

ALAMAN HOSE REEL Design and manufactured as per ISO 9001:2008 Hose has three ply with two synthetic rubber layers and a textile reinforcement. Every unit is hydrostatically tested to 18 bar.

 Hose Reel made of treated electro galvanized steel sheet, painted with electrostatic power coating and oven bag at 180 degree C. Hose Reel drum has ribs to give extra strength and avoid twisting.

 In automatic models the valve opens automatically within three revolutions of the reel.



Model No.

Hose Size

Hose Length

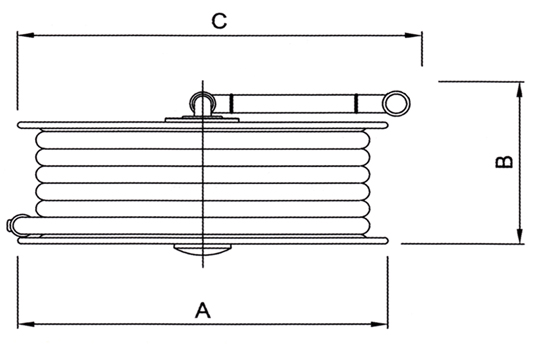

Reel Diameter

A

Depth

B

Width

C

ABFHR1

1"

30 m

550 mm

230 mm

610 mm

ABFHR2

3/4"

30 m

550 mm

190 mm

610 mm

Product Code: ABFHR
