Battery Ram tool

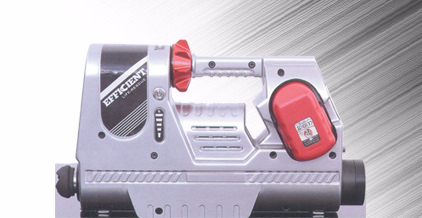

Battery Ram tool ER-560
Application:
• Traffic accident rescue, earthquake disaster relief building collapsing and accident rescue etc.
• Mainly used in open, lifting, remain stability of heavy object.
• More suitable for long distance, high places or high elevation rescue operation.
Product Feature:
• With its own power, no external power source, no tube, zero emissions, greener and healthier.
• High performance, low noise, high performance battery, plug and play, convenient and
Efficient.
• One-key operator, instant on.
• The switch and the lighting adobe split-type design, double conversion on demand.
• LED indicator can show the stock on the battery timely.
• The handle with the configuration of lamp, which can provide light, it is convenient for night
Operation.
• The star-shaped design of hand valve makes the operation more convenient and accurate.
Technical Parameter:
|
Model |
ER - 560 |
|
|
Working Pressure (high pressure) |
10440 psi |
720 bar |
|
Scope |
14.5 inch |
370 mm |
|
Length Of Extra Piston I / II / III |
3.9 / 6.8 / 10.8 inch |
100 / 175 / 275 mm |
|
Lifting Force |
120 KN |
|
|
Lifting Scope |
21.8 - 57.5 inch |
560 - 1480 mm |
|
Weight With Battery |
46.9 lbs. |
21.3 Kg |
|
Dimension (L*W*H) |
22*11.8*6.8 inch |
560*300*175 mm |
