Electric Combi tool

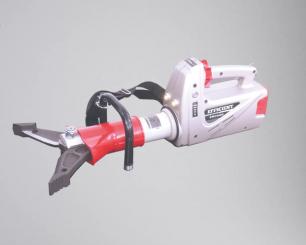

Electric Combi tool ECR-350



Application:

• Traffic accident rescue, earthquake buildings collapsing and accident rescue ect.

• Move and lifting barrier. unclench gap and expand to passage way.

• Deforming metal structure and tearing body plates of vehicle by spreading or clamping.

• Move heavy objects by matching up haulage chain.

• More suitable for long distance, high places or high elevation rescue operation.





Product Feature:

• With it own power, no external power source, no tube, zero emissions, greener and healthier.

• High performance, low noise, high performance battery, plug and play, convenient and efficient.

• One-key operator, instant-on.

• The switch and the lighting adobe split-type design, double conversion on demand.

• LED indicator can show the stock on the battery timely.

• The handle with the configuration of lamp which can provide light, its convenient for night operation.

• The star-shaped design of hand valve makes the operation more convenient and accurate.





Technical Parameter:

Model

ESP - 650

Working Pressure (high pressure)

10440 psi

720 bar

Opening Distance of Blades

13.7 inch

350 mm

Max. Cutting Capacity (Q235 st)

Φ 1.1 inch Circle Steel

Φ 28 mm Circle Steel



0.5 inch Circle Steel

15 mm Circle Steel

Min. Cutting Force

87675 lbs

390 KN

Rated Sepreading Force

6744-8992 lbs

30-40 KN

Weight

44 lbs

20 Kg

Dimension (L*W*H)

32.9*8.4*10.9 inch

838*215*279 mm

Product Code: ECR-350
