Electric Spreader

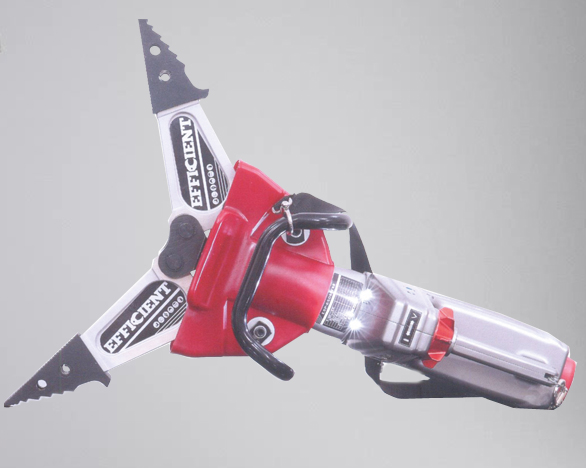

Electric Spreader ESP-650
Application:
· Traffic accident rescue, earthquake buildings collapsing and accident rescue ect.
· Move and lifting barrier. Unclench gap and expand to passage way.
· Deforming metal structure and tearing or clamping.
· Move heavy objects by matching up haulage chain.
· More suitable for long distance, high places or high elevation rescue operation.
Product Feature:
· With it own power, no external power source, no tube, zero emissions, greener and healthier.
· High performance, low noise, high performance battery, plug and play, convenient and efficient.
· One-Key operator, instant-on.
· The switch and the lighting adobe split-type design, double conversion on demand.
· LED indicator can show the stock on the battery timely.
· The handle with the configuration of lamp which can provide light, its convenient and accurate.
· Adopts Seimens decelerator and bosch electric horsepower
Technical Parameter:
|
Model |
EC – 150 |
|
|
Working Pressure (high pressure) |
10440 psi |
720 bar |
|
Opening Distance of Blades |
5.9 inch |
154 mm |
|
Max. Cutting Capacity (Q235 st) |
Ø1.1 inch Circle Steel |
Ø 30 mm Circle Steel |
|
Min. Cutting Force |
15062 Ibs |
670 KN |
|
Rated Spreading Force |
6744-8992 Ibs |
30-40 KN |
|
Weight |
44 Ibs |
20 Kg |
|
Dimension(L*W*H) |
32.9*8.4*10.9 inch |
838*215*279 mm |
