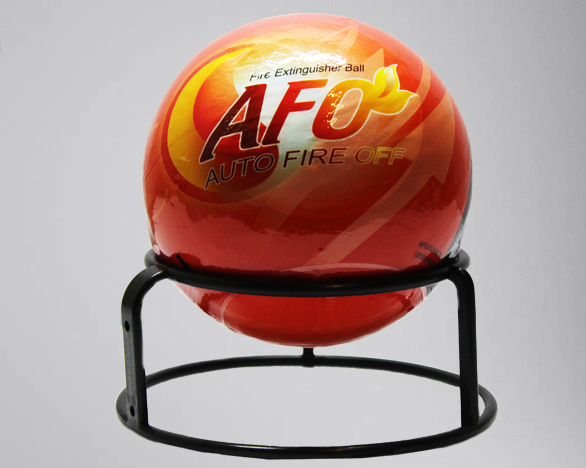

Ball Extinguishers







Installation & Usage:

1-Lightweight and portable, user-friendly for all people

2- Use bolts to fix the bracket on a flat surface above or around fire prone area, then place the ball into bracket with arrow pointing down, better put 2 balls in each place, to make sure best protection.

3- Application area: Transformers room, wall socket, warehouse, kitchen, hotel, shopping mall, ship, garage, the car trunk, etc.

4-When a fire occurs with no person at present, the ball will extinguish the fire automatically and timely stop fire spreading.

5- When people witness a fire occurs, cast the fireball into fire source, the flame will trigger fire-extinguishing mechanism, within 3 seconds the ball will extinguish the fire, with an alarm of 120dB.

6- After totally fire extinguished, clean the site with Vacuum cleaner or other tool.





SPECIFICATIONS:

Weight

0.6Kg

1.2 Kg

1.35 Kg

4 Kg

Diameter

100 mm

150 mm

152 mm

215 mm

Extinguishing Range

1.3m3

2.5 m3

3 m3

9 m3

Alarm

120dB

Activating time

≤3s

≤2s

Warranty

5 years (no need any maintenance)

Main Extinguishing agent

Type 90 ABC Powder(non toxic)

Material standards

Conforming to international environmental protection standards




Product Code: AB-BALL
